INA NA4876-XL Needle Roller Bearing - 380X480X100MM

  • Brand:
  • Model:

    NA4876-XL

  • Availability:

    IN STOCK

  • Trade Terms:

    CIF

  • Payment Terms:

    100% T/T or Western Union or PAYPAL in advances

  • Delivery Terms:

    1-3 working days upon your payment

  • Shipping Terms:

    Express Delivery or Air or Sea

  • Price:

    Please contact Email sales@hensenbearing.com

  • We can provide the certificate of origin to ensure genuine products.Fast delivery , 3 years warranty

  • The real photos haven't been uploaded yet,please contact us by phone or email to view our detailed actual pictures.

We are a one-stop supplier of high quality bearings. We can supply the best products at the lowest price.

Product Description

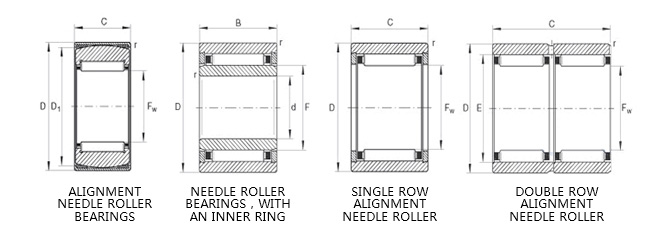

The NA4876-XL is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with an Inner Ring. The Inner Ring is separable from the Cage and Outer Ring, while the Outer Ring is fixed to the Cage and has a lubrication groove and an oil hole. Bearings with an Inner Ring are used when the shaft being used isn't heat-treated and finished by grinding. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high radial load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 380x480x100mm.

NA 48 76 XL
Single Row Caged Needle Roller Bearing Dimension Series 48 380mm - Bore Size X-Life Bearing Including Inner Ring

Product Detailed Parameter

  • Brand:
  • Model:
    NA4876-XL
  • Availability:
    IN STOCK
  • Type:
    Needle Roller Bearing
  • d - Inside diameter (mm):
    380 mm
  • D - Outside diameter (mm):
    480 mm
  • B - Width (mm):
    100 mm
  • Weight (Kg):
    42.64 Kg
  • Retainer type:
    Steel
  • Seals or shields:
    Open Type
  • Clearance:
    Standard
  • Basic dynamic load rating (KN):
    1130
  • Basic static load rating (KN):
    2900
  • Fatigue load limit (KN):
    375
  • Reference speed (r/min):
    510
  • Limiting speed (r/min):
    1130
  • MAX. Operating Temperature:
    120°C/248°F
  • MIN. Operating Temperature:
    -30°C/-22°F
  • IKO Equivalent:
    NA4876
  • Raceway Diameter Inner Ring (MM):
    415
